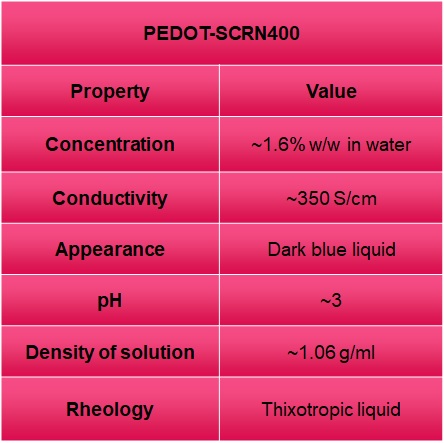

PEDOT-SCRN400 TM: Conductive Screen Printing Ink
This ink is designed for application by conventional sreen printers. Applicble substrate include:
- Plastic films such as polyethylene terephthalate (PET), polycarbonate (PC), Polyimide Kapton etc.
- Textiles and Papers - Contact us for more details.
- See examples below
Typical application procedure:
- 110mesh screen ; 65-70A durometer squeegee ; 45o ; Two passes.
- Curing at 95oC (~200oF) /10 minutes.
- Heat cure is required to achieve best mechanical and electrical properties.
Examples and Application Notes

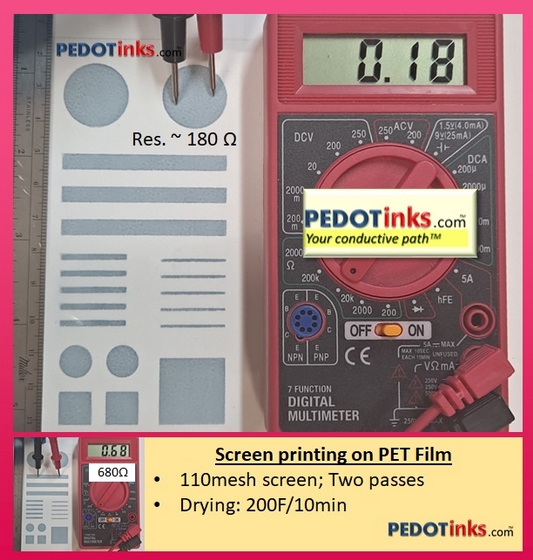

Screen printing on PET film
The picture on the right shows results of PEDOT-SCRN400 printed on clear PET film. Measurements shown for two areas on the film. See inset at bottom-left corner.
PEDOT-SCRN400 may be used to fabricate electrically conductive patterns on textiles. See examples below.

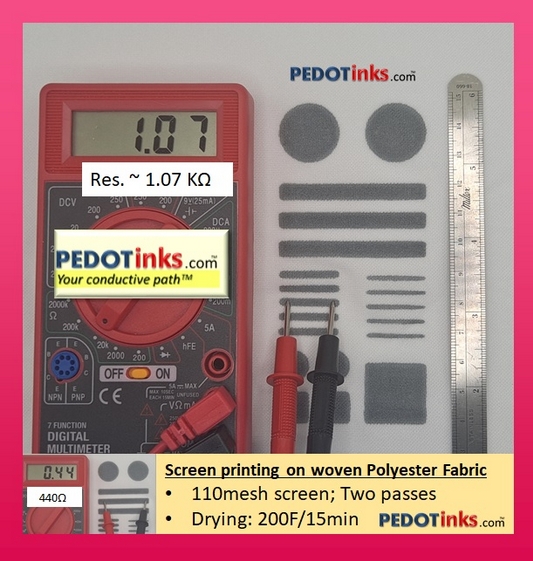

Screen printing on polyester (PET) double knit woven fabric
Picture on the right shows results of PEDOT-SCRN400 printed on woven polyester fabric. Measurements shown for two areas on the fabric. See inset at bottom-left corner.

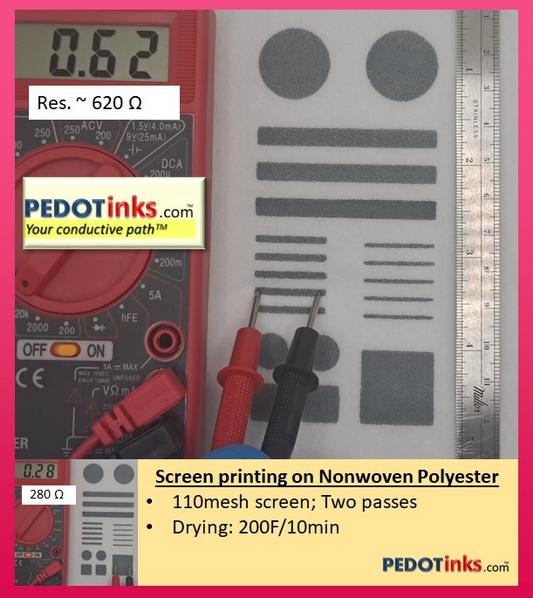

Screen printing on polyester (PET) nonwoven fabric
Picture on the right shows results of PEDOT-SCRN400 printed on nonwoven polyester (PET) textile. Measurements shown on two areas on the fabric. See inset at bottom-left corner.

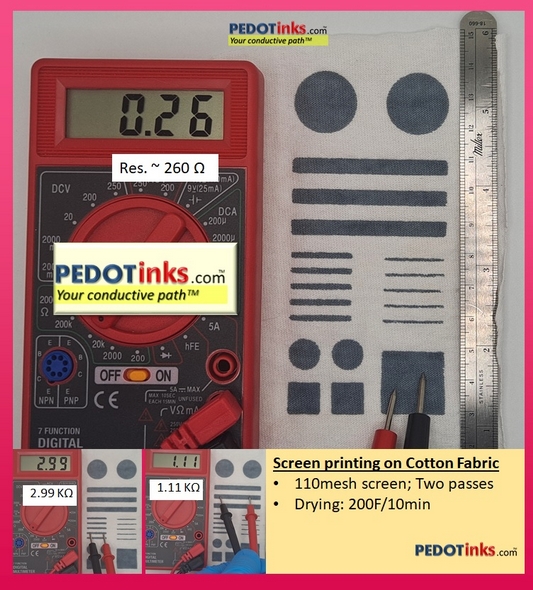

Screen Printing on Cotton Fabric
Picture on the right shows printing results on white cotton fabric. Insets on the bottom left show resistance values for other areas of the pattern.

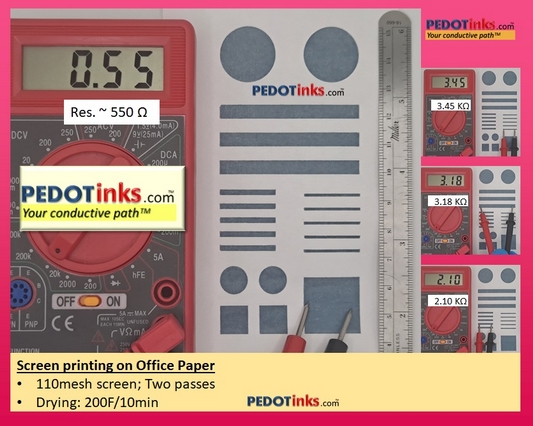

Screen Printing on Paper
Picture on the right shows screen prinitng result of conductive ink on conventional office paper. The three insets on the right show conductivity results for additional areas of the printed pattern.
Available quantities: gr, Kg, Liters.
Minimum order quantity 30g. Please contact us for more information and prices.
Samples of all products may be purchased for initial evaluation.
